Rigging Screws
Eye & Eye Forged Straining Screws Galvanised
Click to enlarge
| Product Code | A | B | L1 | L2 | G | H | Weight (kg/each) |
|---|---|---|---|---|---|---|---|
| FOREE06 | 6mm | 80mm | 122mm | 182mm | 9mm | 8mm | 0.06 |
| FOREE08 | 8mm | 105mm | 155mm | 235mm | 10mm | 9mm | 0.13 |
| FOREE10 | 10mm | 125mm | 185mm | 280mm | 13mm | 12mm | 0.21 |
| FOREE12 | 12mm | 138mm | 215mm | 320mm | 15mm | 15mm | 0.45 |
| FOREE16 | 20mm | 218mm | 350mm | 510mm | 28mm | 27mm | 2.13 |
| FOREE16 | 16mm | 187mm | 300mm | 440mm | 24mm | 23mm | 1.16 |
| FOREE24 | 24mm | 260mm | 426mm | 605mm | 33mm | 32mm | 4.32 |
| FOREE30 | 30mm | 260mm | 440mm | 592mm | 33mm | 32mm | 4.7 |
| FOREE33 | 33mm | 295mm | 620mm | 620mm | 39mm | 36mm | 6 |
Eye & Eye Galvanised Turnbuckles US Federal Specification FF-T-791 B
Click to enlarge
| Product Code | A (inches) | A (mm) | B | N | O | Weight (kg/each) |
|---|---|---|---|---|---|---|
| GTEE064 | 1/4" | 6mm | 4" | 187mm | 288mm | 0.15mm |
| GTEE084 | 5/16" | 8mm | 4 1/2" | 221mm | 348mm | 0.21mm |
| GTEE106 | 3/8" | 10mm | 6" | 302mm | 454mm | 0.37mm |
| GTEE126 | 1/2" | 13mm | 6" | 338mm | 490mm | 0.73mm |
| GTEE129 | 1/2" | 13mm | 9" | 414mm | 642mm | 0.79mm |
| GTEE166 | 5/8" | 16mm | 6" | 394mm | 546mm | 1.37mm |
| GTEE169 | 5/8" | 16mm | 9" | 470mm | 698mm | 1.31mm |
| GTEE206 | 3/4" | 19mm | 6" | 432mm | 584mm | 1.86mm |
| GTEE209 | 3/4" | 19mm | 9" | 508mm | 736mm | 2.31mm |
| GTEE226 | 7/8" | 22mm | 6" | 415mm | 720mm | 2.72mm |
| GTEE256 | 1" | 25mm | 6" | 524mm | 676mm | 4.29mm |
| GTEE1612 | 5/8" | 16mm | 12" | 546mm | 851mm | 1.53mm |
| GTEE2012 | 3/4" | 19mm | 12" | 584mm | 889mm | 2.56mm |
| GTEE2018 | 3/4" | 19mm | 18" | 737mm | 1194mm | 3.11mm |
| GTEE2212 | 7/8" | 22mm | 12" | 567mm | 872mm | 3.63mm |
| GTEE2512 | 1" | 25mm | 12" | 676mm | 981mm | 5.07mm |
| GTEE2518 | 1" | 25mm | 18" | 829mm | 1286mm | 6.62mm |
Eye & Eye Rigging Screws with Locknuts Galvanised
Click to enlarge
| Product Code | SWL (t) | A (in) | A (mm) | J | K | L | M | N | O | P | R | S | T | Weight (kg/each) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSEE06 | 0.15 | 1/4" | 6mm | 6mm | 9mm | 4mm | 21mm | 178mm | 254mm | 102mm | 14mm | 8mm | 6mm | 0.14 |
| RSEE08 | 0.2 | 5/16" | 8mm | 6mm | 9mm | 6mm | 21mm | 203mm | 305mm | 127mm | 19mm | 8mm | 8mm | 0.3 |
| RSEE10 | 0.3 | 3/8" | 10mm | 8mm | 11mm | 8mm | 19mm | 235mm | 349mm | 152mm | 25mm | 11mm | 8mm | 0.45 |
| RSEE12 | 0.5 | 1/2" | 12mm | 9mm | 19mm | 9mm | 35mm | 343mm | 524mm | 229mm | 36mm | 14mm | 11mm | 1 |
| RSEE16 | 0.75 | 5/8" | 16mm | 9mm | 22mm | 13mm | 51mm | 381mm | 550mm | 229mm | 41mm | 16mm | 14mm | 1.4 |
| RSEE20 | 1.2 | 3/4" | 20mm | 11mm | 22mm | 16mm | 48mm | 387mm | 550mm | 229mm | 51mm | 22mm | 16mm | 2.5 |
| RSEE22 | 1.7 | 7/8" | 22mm | 13mm | 25mm | 19mm | 63mm | 476mm | 702mm | 305mm | 51mm | 22mm | 16mm | 3.6 |
| RSEE25 | 2.2 | 1" | 24mm | 14mm | 32mm | 22mm | 63mm | 556mm | 822mm | 356mm | 57mm | 25mm | 19mm | 5.9 |
| RSEE32 | 3.8 | 1 1/4" | 33mm | 16mm | 38mm | 25mm | 76mm | 604mm | 872mm | 381mm | 65mm | 35mm | 22mm | 9.1 |
| RSEE38 | 5.2 | 1 1/2" | 39mm | 19mm | 47mm | 32mm | 98mm | 674mm | 949mm | 407mm | 75mm | 38mm | 25mm | 15 |

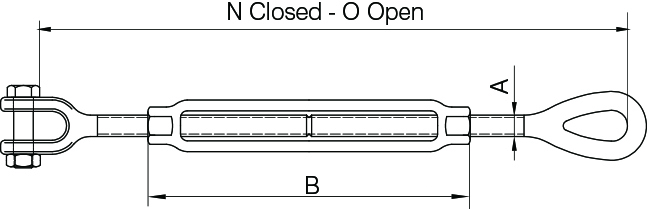

Eye & Jaw Galvanised Turnbuckles US Federal Specification FF-T-791 B
Click to enlarge
| Product Code | A (inches) | A (mm) | B | N | O | Weight (kg/each) |
|---|---|---|---|---|---|---|
| GTEJ064 | 1/4" | 6mm | 4" | 187mm | 288mm | 0.15mm |
| GTEJ084 | 5/16" | 8mm | 4 1/2" | 221mm | 348mm | 0.21mm |
| GTEJ106 | 3/8" | 10mm | 6" | 302mm | 454mm | 0.37mm |
| GTEJ126 | 1/2" | 13mm | 6" | 338mm | 490mm | 0.73mm |
| GTEJ129 | 1/2" | 13mm | 9" | 414mm | 642mm | 0.79mm |
| GTEJ166 | 5/8" | 16mm | 6" | 394mm | 546mm | 1.37mm |
| GTEJ169 | 5/8" | 16mm | 9" | 470mm | 698mm | 1.31mm |
| GTEJ206 | 3/4" | 19mm | 6" | 432mm | 584mm | 1.86mm |
| GTEJ209 | 3/4" | 19mm | 9" | 508mm | 736mm | 2.31mm |
| GTEJ226 | 7/8" | 22mm | 6" | 415mm | 720mm | 2.72mm |
| GTEJ256 | 1" | 25mm | 6" | 524mm | 676mm | 4.29mm |
| GTEJ1612 | 5/8" | 16mm | 12" | 546mm | 851mm | 1.53mm |
| GTEJ2012 | 3/4" | 19mm | 12" | 584mm | 889mm | 2.56mm |
| GTEJ2018 | 3/4" | 19mm | 18" | 737mm | 1194mm | 3.11mm |
| GTEJ2212 | 7/8" | 22mm | 12" | 567mm | 872mm | 3.63mm |
| GTEJ2512 | 1" | 25mm | 12" | 676mm | 981mm | 5.07mm |
| GTEJ2518 | 1" | 25mm | 18" | 829mm | 1286mm | 6.62mm |

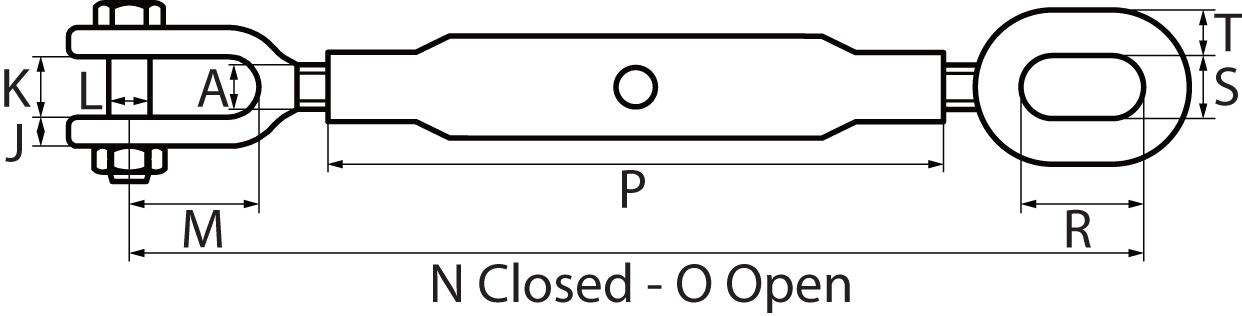

Eye & Jaw Rigging Screws with Locknuts Galvanised
Click to enlarge
| Product Code | SWL (t) | A (in) | A (mm) | J | K | L | M | N | O | P | R | S | T | Weight (kg/each) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSEJ06 | 0.15 | 1/4" | 6mm | 6mm | 9mm | 4mm | 21mm | 178mm | 254mm | 102mm | 14mm | 8mm | 6mm | 0.14 |
| RSEJ08 | 0.2 | 5/16" | 8mm | 6mm | 9mm | 6mm | 21mm | 203mm | 305mm | 127mm | 19mm | 8mm | 8mm | 0.3 |
| RSEJ10 | 0.3 | 3/8" | 10mm | 8mm | 11mm | 8mm | 19mm | 235mm | 349mm | 152mm | 25mm | 11mm | 8mm | 0.45 |
| RSEJ12 | 0.5 | 1/2" | 12mm | 9mm | 19mm | 9mm | 35mm | 343mm | 524mm | 229mm | 36mm | 14mm | 11mm | 1 |
| RSEJ16 | 0.75 | 5/8" | 16mm | 9mm | 22mm | 13mm | 51mm | 381mm | 550mm | 229mm | 41mm | 16mm | 14mm | 1.4 |
| RSEJ20 | 1.2 | 3/4" | 20mm | 11mm | 22mm | 16mm | 48mm | 387mm | 550mm | 229mm | 51mm | 22mm | 16mm | 2.5 |
| RSEJ22 | 1.7 | 7/8" | 22mm | 13mm | 25mm | 19mm | 63mm | 476mm | 702mm | 305mm | 51mm | 22mm | 16mm | 3.6 |
| RSEJ25 | 2.2 | 1" | 24mm | 14mm | 32mm | 22mm | 63mm | 556mm | 822mm | 356mm | 57mm | 25mm | 19mm | 5.9 |
| RSEJ32 | 3.8 | 1 1/4" | 33mm | 16mm | 38mm | 25mm | 76mm | 604mm | 872mm | 381mm | 65mm | 35mm | 22mm | 9.1 |
| RSEJ38 | 5.2 | 1 1/2" | 39mm | 19mm | 47mm | 32mm | 98mm | 674mm | 949mm | 407mm | 75mm | 38mm | 25mm | 15 |

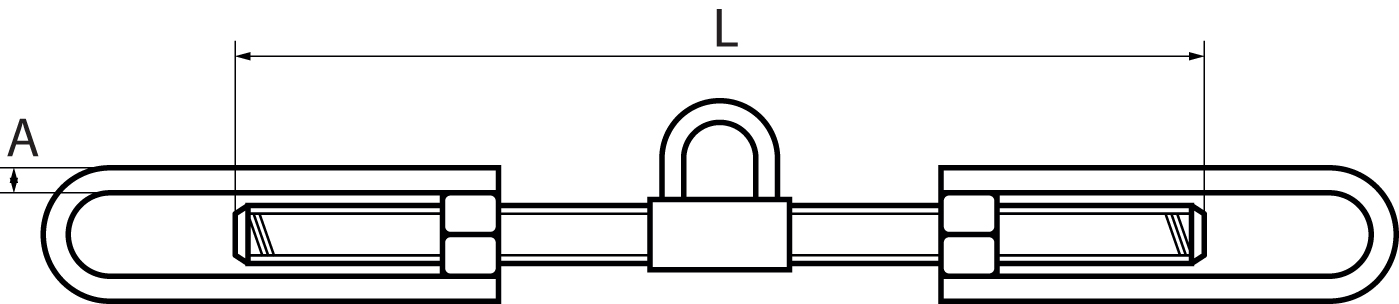

Hamburgers for Lashing Purposes - Untested
Click to enlarge
| Product Code | Diameter | L | A | MBL (tonnes) | Weight (kg/each) |
|---|---|---|---|---|---|
| HAM24 | 24mm | 400mm | 16mm | 13 | 3 |
| HAM28 | 28mm | 400mm | 18mm | 18 | 4.4 |

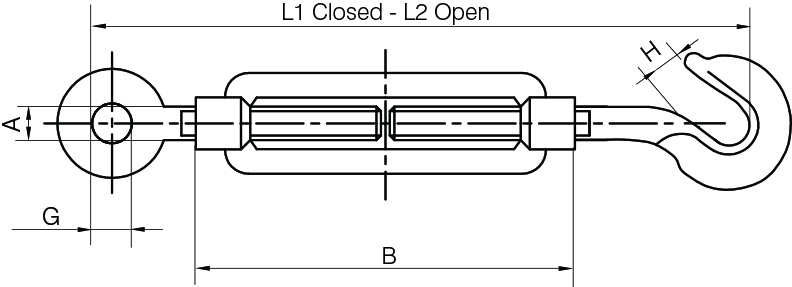

Hook & Eye Forged Straining Screws Galvanised
Click to enlarge
| Product Code | A | B | L1 | L2 | G | H | Weight (kg/each) |
|---|---|---|---|---|---|---|---|
| FORHE06 | 6mm | 80mm | 122mm | 182mm | 9mm | 8mm | 0.06 |
| FORHE08 | 8mm | 105mm | 155mm | 235mm | 10mm | 9mm | 0.13 |
| FORHE10 | 10mm | 125mm | 185mm | 280mm | 13mm | 12mm | 0.21 |
| FORHE12 | 12mm | 138mm | 215mm | 320mm | 15mm | 15mm | 0.45 |
| FORHE16 | 16mm | 187mm | 300mm | 440mm | 24mm | 23mm | 1.16 |
| FORHE20 | 20mm | 218mm | 350mm | 510mm | 28mm | 27mm | 2.13 |
| FORHE24 | 24mm | 260mm | 426mm | 605mm | 33mm | 32mm | 4.32 |
| FORHE30 | 30mm | 260mm | 440mm | 592mm | 33mm | 32mm | 4.7 |
| FORHE33 | 33mm | 295mm | 620mm | 620mm | 39mm | 36mm | 6 |
Hook & Eye Galvanised Turnbuckles US Federal Specification FF-T-791 B
Click to enlarge
| Product Code | A (inches) | A (mm) | B | N | O | Weight (kg/each) |
|---|---|---|---|---|---|---|
| GTHE106 | 3/8" | 10mm | 6" | 302mm | 454mm | 0.37mm |
| GTHE126 | 1/2" | 13mm | 6" | 338mm | 490mm | 0.73mm |
| GTHE129 | 1/2" | 13mm | 9" | 414mm | 642mm | 0.79mm |
| GTHE166 | 5/8" | 16mm | 6" | 394mm | 546mm | 1.37mm |
| GTHE169 | 5/8" | 16mm | 9" | 470mm | 698mm | 1.31mm |
| GTHE206 | 3/4" | 19mm | 6" | 432mm | 584mm | 1.86mm |
| GTHE209 | 3/4" | 19mm | 9" | 508mm | 736mm | 2.31mm |
| GTHE256 | 1" | 25mm | 6" | 524mm | 676mm | 4.29mm |
| GTHE1612 | 5/8" | 16mm | 12" | 546mm | 851mm | 1.53mm |
| GTHE2012 | 3/4" | 19mm | 12" | 584mm | 889mm | 2.56mm |
| GTHE2018 | 3/4" | 19mm | 18" | 737mm | 1194mm | 3.11mm |
| GTHE2512 | 1" | 25mm | 12" | 676mm | 981mm | 5.07mm |
| GTHE2518 | 1" | 25mm | 18" | 829mm | 1286mm | 6.62mm |
Hook & Hook Forged Straining Screws Galvanised
Click to enlarge
| Product Code | A | B | L1 | L2 | G | H | Weight (kg/each) |
|---|---|---|---|---|---|---|---|
| FORHH06 | 6mm | 80mm | 122mm | 182mm | 9mm | 8mm | 0.06 |
| FORHH08 | 8mm | 105mm | 155mm | 235mm | 10mm | 9mm | 0.13 |
| FORHH10 | 10mm | 125mm | 185mm | 280mm | 13mm | 12mm | 0.21 |
| FORHH12 | 12mm | 138mm | 215mm | 320mm | 15mm | 15mm | 0.45 |
| FORHH16 | 16mm | 187mm | 300mm | 440mm | 24mm | 23mm | 1.16 |
| FORHH20 | 20mm | 218mm | 350mm | 510mm | 28mm | 27mm | 2.13 |
| FORHH24 | 24mm | 260mm | 426mm | 605mm | 33mm | 32mm | 4.32 |
Hook & Hook Galvanised Turnbuckles US Federal Specification FF-T-791 B
Click to enlarge
| Product Code | A (inches) | A (mm) | B | N | O | Weight (kg/each) |
|---|---|---|---|---|---|---|
| GTHH106 | 3/8" | 10mm | 6" | 302mm | 454mm | 0.37mm |
| GTHH126 | 1/2" | 13mm | 6" | 338mm | 490mm | 0.73mm |
| GTHH129 | 1/2" | 13mm | 9" | 414mm | 642mm | 0.79mm |
| GTHH166 | 5/8" | 16mm | 6" | 394mm | 546mm | 1.37mm |
| GTHH169 | 5/8" | 16mm | 9" | 470mm | 698mm | 1.31mm |
| GTHH206 | 3/4" | 19mm | 6" | 432mm | 584mm | 1.86mm |
| GTHH209 | 3/4" | 19mm | 9" | 508mm | 736mm | 2.31mm |
| GTHH256 | 1" | 25mm | 6" | 524mm | 676mm | 4.29mm |
| GTHH1612 | 5/8" | 16mm | 12" | 546mm | 851mm | 1.53mm |
| GTHH2012 | 3/4" | 19mm | 12" | 584mm | 889mm | 2.56mm |
| GTHH2018 | 3/4" | 19mm | 18" | 737mm | 1194mm | 3.11mm |
| GTHH2512 | 1" | 25mm | 12" | 676mm | 981mm | 5.07mm |
| GTHH2518 | 1" | 25mm | 18" | 829mm | 1286mm | 6.62mm |
Jaw & Jaw Galvanised Turnbuckles US Federal Specification FF-T-791 B
Click to enlarge
| Product Code | A (inches) | A (mm) | B | N | O | Weight (kg/each) |
|---|---|---|---|---|---|---|
| GTJJ064 | 1/4" | 6mm | 4" | 187mm | 288mm | 0.15mm |
| GTJJ084 | 5/16" | 8mm | 4 1/2" | 221mm | 348mm | 0.21mm |
| GTJJ106 | 3/8" | 10mm | 6" | 302mm | 454mm | 0.37mm |
| GTJJ126 | 1/2" | 13mm | 6" | 338mm | 490mm | 0.73mm |
| GTJJ129 | 1/2" | 13mm | 9" | 414mm | 642mm | 0.79mm |
| GTJJ166 | 5/8" | 16mm | 6" | 394mm | 546mm | 1.37mm |
| GTJJ169 | 5/8" | 16mm | 9" | 470mm | 698mm | 1.31mm |
| GTJJ206 | 3/4" | 19mm | 6" | 432mm | 584mm | 1.86mm |
| GTJJ209 | 3/4" | 19mm | 9" | 508mm | 736mm | 2.31mm |
| GTJJ226 | 7/8" | 22mm | 6" | 415mm | 720mm | 2.72mm |
| GTJJ256 | 1" | 25mm | 6" | 524mm | 676mm | 4.29mm |
| GTJJ1612 | 5/8" | 16mm | 12" | 546mm | 851mm | 1.53mm |
| GTJJ2012 | 3/4" | 19mm | 12" | 584mm | 889mm | 2.56mm |
| GTJJ2018 | 3/4" | 19mm | 18" | 737mm | 1194mm | 3.11mm |
| GTJJ2212 | 7/8" | 22mm | 12" | 567mm | 872mm | 3.63mm |
| GTJJ2512 | 1" | 25mm | 12" | 676mm | 981mm | 5.07mm |
| GTJJ2518 | 1" | 25mm | 18" | 829mm | 1286mm | 6.62mm |
Jaw & Jaw Rigging Screws with Locknuts Galvanised
Click to enlarge
| Product Code | SWL (t) | A (in) | A (mm) | J | K | L | M | N | O | P | R | S | T | Weight (kg/each) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSJJ06 | 0.15 | 1/4" | 6mm | 6mm | 9mm | 4mm | 21mm | 178mm | 254mm | 102mm | 14mm | 8mm | 6mm | 0.14 |
| RSJJ08 | 0.2 | 5/16" | 8mm | 6mm | 9mm | 6mm | 21mm | 203mm | 305mm | 127mm | 19mm | 8mm | 8mm | 0.3 |
| RSJJ10 | 0.3 | 3/8" | 10mm | 8mm | 11mm | 8mm | 19mm | 235mm | 349mm | 152mm | 25mm | 11mm | 8mm | 0.45 |
| RSJJ12 | 0.5 | 1/2" | 12mm | 9mm | 19mm | 9mm | 35mm | 343mm | 524mm | 229mm | 36mm | 14mm | 11mm | 1 |
| RSJJ16 | 0.75 | 5/8" | 16mm | 9mm | 22mm | 13mm | 51mm | 381mm | 550mm | 229mm | 41mm | 16mm | 14mm | 1.4 |
| RSJJ20 | 1.2 | 3/4" | 20mm | 11mm | 22mm | 16mm | 48mm | 387mm | 550mm | 229mm | 51mm | 22mm | 16mm | 2.5 |
| RSJJ22 | 1.7 | 7/8" | 22mm | 13mm | 25mm | 19mm | 63mm | 476mm | 702mm | 305mm | 51mm | 22mm | 16mm | 3.6 |
| RSJJ25 | 2.2 | 1" | 24mm | 14mm | 32mm | 22mm | 63mm | 556mm | 822mm | 356mm | 57mm | 25mm | 19mm | 5.9 |
| RSJJ32 | 3.8 | 1 1/4" | 33mm | 16mm | 38mm | 25mm | 76mm | 604mm | 872mm | 381mm | 65mm | 35mm | 22mm | 9.1 |
| RSJJ38 | 5.2 | 1 1/2" | 39mm | 19mm | 47mm | 32mm | 98mm | 674mm | 949mm | 407mm | 75mm | 38mm | 25mm | 15 |
