Stainless Steel Eyebolts
St/Steel Eyebolt with Lag Thread Woodscrew Thread
Click to enlarge
| Product Code | A | B | C | D | F | G | H |
|---|---|---|---|---|---|---|---|
| SSEBW0550 | 5mm | 50mm | 30mm | 11mm | 10mm | 5mm | 21mm |
| SSEBW06100 | 6mm | 100mm | 60mm | 14mm | 12mm | 6mm | 26mm |
| SSEBW0660 | 6mm | 60mm | 36mm | 14mm | 12mm | 6mm | 26mm |
| SSEBW08100 | 8mm | 100mm | 60mm | 18mm | 16mm | 8mm | 34mm |
| SSEBW0860 | 8mm | 60mm | 36mm | 18mm | 16mm | 8mm | 34mm |
| SSEBW1080 | 10mm | 80mm | 48mm | 22mm | 20mm | 10mm | 42mm |
| SSEBW10120 | 10mm | 120mm | 72mm | 22mm | 20mm | 10mm | 42mm |

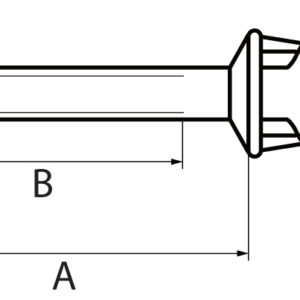

St/Steel Long Shank Eyebolt with Nut & Washer
Click to enlarge
| Product Code | Size D | A | B | C | D | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| SSEBL06A | 6mm | 40mm | 34mm | 5mm | 12mm | 0.040 |
| SSEBL06B | 6mm | 60mm | 54mm | 5mm | 12mm | 0.040 |
| SSEBL06 | 6mm | 80mm | 70mm | 5mm | 12mm | 0.050 |
| SSEBL08A | 8mm | 80mm | 70mm | 6mm | 14mm | 0.09 |
| SSEBL08 | 8mm | 100mm | 90mm | 6mm | 14mm | 0.098 |
| SSEBL10A | 10mm | 200mm | 190mm | 8mm | 25mm | 0.180 |
| SSEBL10 | 10mm | 100mm | 88mm | 8mm | 16mm | 0.145 |
| SSEBL12A | 12mm | 200mm | 185mm | 10mm | 30mm | 0.190 |
| SSEBL12 | 12mm | 120mm | 105mm | 10mm | 18mm | 0.160 |
| SSEBL16 | 16mm | 150mm | 135mm | 12mm | 35mm | 0.240 |
| SSEBL20 | 20mm | 150mm | 145mm | 15mm | 39mm | 0.361 |
| SSEBL24 | 24mm | 150mm | 145mm | 20mm | 50mm | 0.486 |
St/Steel Long Shank Eyebolts Fully Threaded
Click to enlarge
| Product Code | Size D | A | B | H | L | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| SSEBL0650 | 6mm | 26mm | 16mm | 31mm | 50mm | 0.04 |
| SSEBL0850 | 8mm | 32mm | 20mm | 39mm | 50mm | 0.090 |
| SSEBL1050 | 10mm | 41mm | 25mm | 48mm | 50mm | 0.130 |
| SSEBL1250 | 12mm | 50mm | 30mm | 61mm | 50mm | 0.124 |
| SSEBL1650 | 16mm | 60mm | 35mm | 72mm | 50mm | 0.300 |
| SSEBL2080 | 20mm | 72mm | 40mm | 86mm | 80mm | 0.450 |
| SSEBL2480 | 24mm | 90mm | 50mm | 111mm | 80mm | 0.850 |

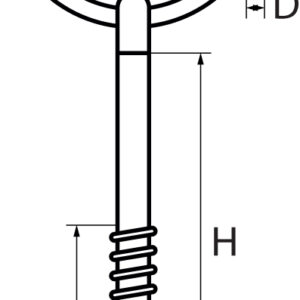

St/Steel Ringbolt with Lag Thread Woodscrew thread
Click to enlarge
| Product Code | d | L | H | H1 | Weight (kgs/each) |
|---|---|---|---|---|---|
| SSRBL03 | 4mm | 25mm | 45mm | 30mm | 0.010 |
| SSRBL05 | 6mm | 30mm | 50mm | 35mm | 0.030 |
| SSRBL07 | 8mm | 50mm | 60mm | 40mm | 0.080 |

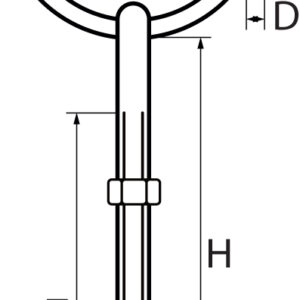

St/Steel Ringbolts with Nut
Click to enlarge
| Product Code | M | D | L | H | T | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| SSRB06 | 6mm | 35mm | 35mm | 6mm | 50mm | 0.060 |
| SSRB08 | 8mm | 45mm | 45mm | 8mm | 50mm | 0.110 |
| SSRB10 | 10mm | 50mm | 50mm | 9mm | 75mm | 0.200 |
| SSRB12 | 12mm | 60mm | 60mm | 12mm | 8mm | 120 |

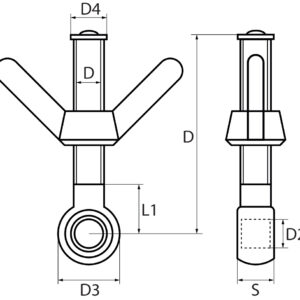

Stainless Steel Long Shank Eyebolts with Wing Nut
Click to enlarge
| Product Code | D | D2 | D3 | D4 | S | L | L1 |
|---|---|---|---|---|---|---|---|
| SSEW0860 | 8mm | 8mm | 18mm | 12mm | 9mm | 60mm | 12mm |
| SSEW1060 | 10mm | 10mm | 20mm | 12mm | 12mm | 60mm | 16mm |
| SSEW1280 | 12mm | 12mm | 25mm | 13mm | 14mm | 80mm | 20mm |
| SSEW12150 | 12mm | 12mm | 25mm | 13mm | 14mm | 150mm | 20mm |
| SSEW16100 | 16mm | 16mm | 32mm | 18mm | 17mm | 100mm | 25mm |
| SSEW16200 | 16mm | 16mm | 32mm | 18mm | 17mm | 200mm | 25mm |
| SSEW20120 | 20mm | 18mm | 40mm | 22mm | 22mm | 120mm | 32mm |
| SSEW20200 | 20mm | 18mm | 40mm | 22mm | 22mm | 200mm | 32mm |

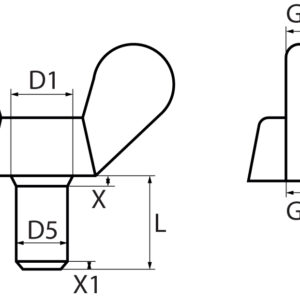

Stainless Steel Wing Bolt
Click to enlarge
| Product Code | D5 | l | D1 | G1 | M | X |
|---|---|---|---|---|---|---|
| SSWB05 | 5mm | 10mm | 5mm | 2mm | 6mm | 0.80 mm |
| SSWB06 | 6mm | 16mm | 6mm | 2mm | 8mm | 1mm |
| SSWB08 | 8mm | 16mm | 8mm | 3mm | 10mm | 1.25 mm |
| SSWB10 | 10mm | 20mm | 10mm | 4mm | 12mm | 1.5mm |
| SSWB12 | 12mm | 24mm | 12mm | 5mm | 14mm | 1.75 mm |
